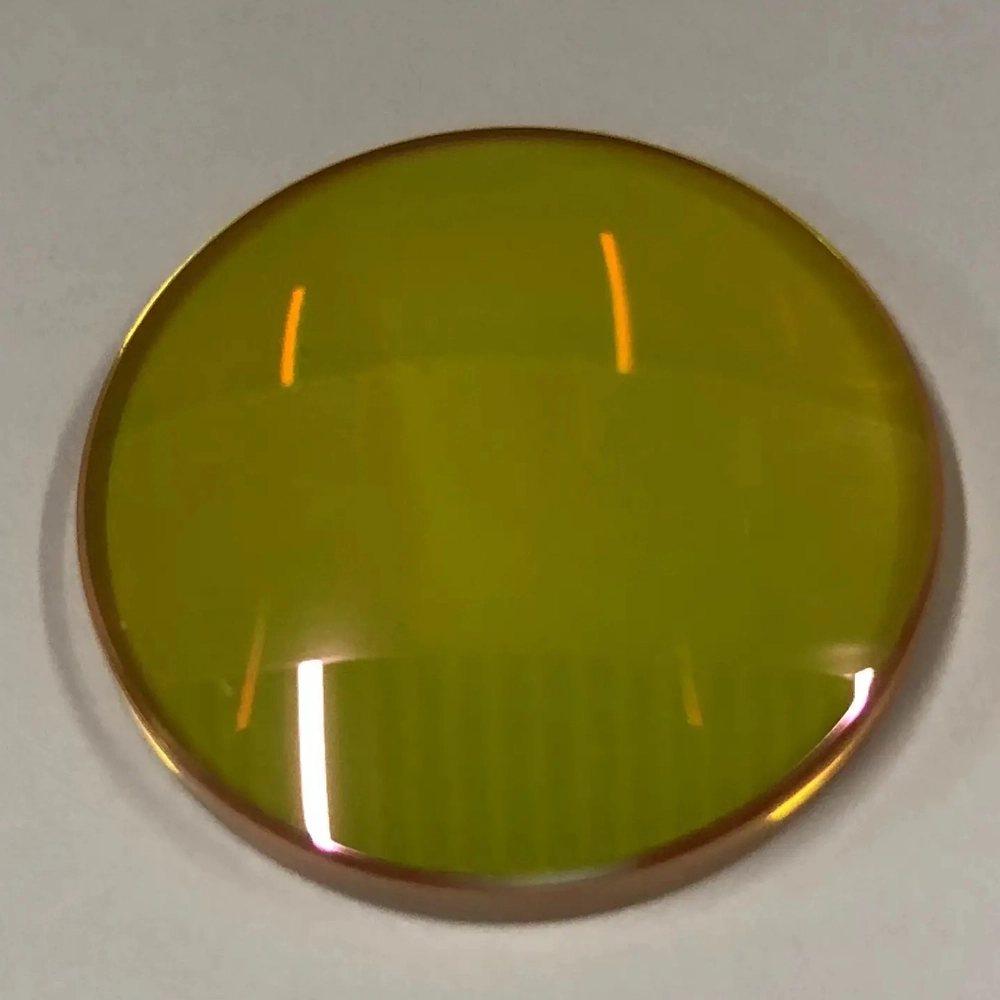

ZnSe infrared aspheric optical lenses are precision-engineered from zinc selenide, a material known for its exceptional clarity and broad transmission across the infrared spectrum. These lenses optimize imaging by minimizing spherical aberrations, making them ideal for high-resolution thermal imaging, CO2 laser optics, and advanced medical imaging applications. Trust CNGEIR, one of the famous aspheric lens manufacturers, for reliable lenses.
| Material | ZnSe | |||||
| Specification | Customized | |||||
| Diameter Range | 12mm~450mm | |||||
| Aspheric turning diameter | 12mm~200mm | |||||
| Diameter Tolerance | 0.05mm | |||||
| Center Thickness Tolerance | 0.02mm | |||||
| Surface Quality | 20/10、10/5 | |||||
| Surface Accuracy | PV λ/10、λ/20 | |||||
| Surface Roughness | Ra≤0.04μm | |||||
| Local Error | ≤0.5 | |||||
| Decentration | ≤1′ | |||||
| Total High Tolerance | ±0.02mm | |||||
| Concave Sag | ±0.02mm | |||||
